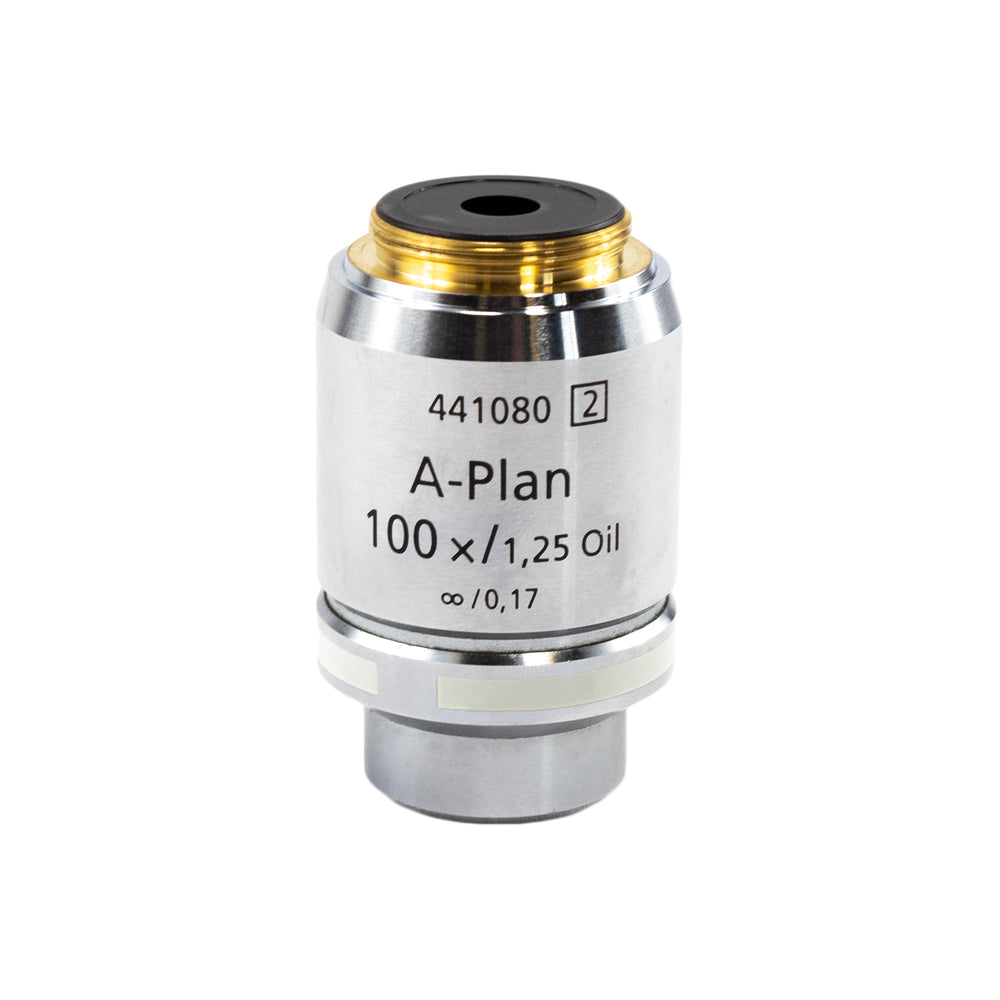

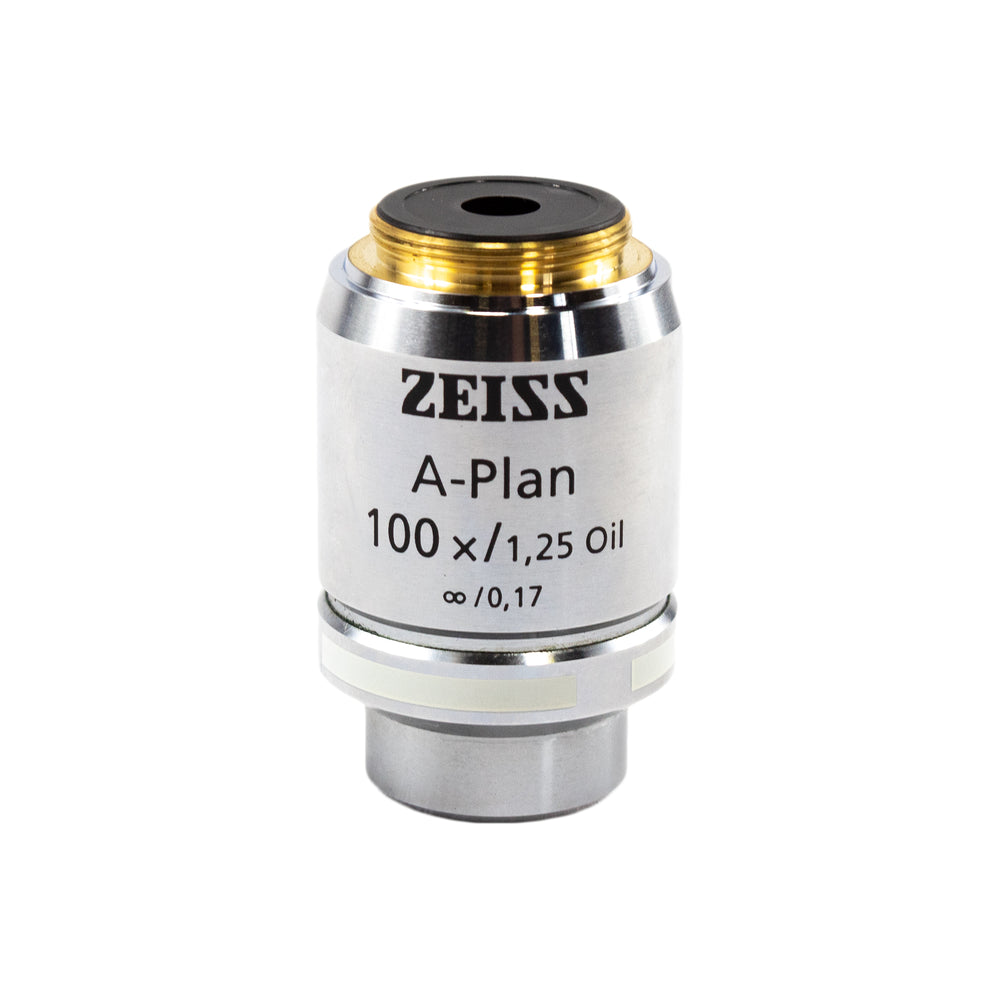

Carl Zeiss 441080 Microscope Objective A-Plan 100x/1.25 Oil - USED - Excellent Condition

Sale price

Regular price $137.00
( / )
Shipping calculated at checkout.
Click here to be notified by email when Carl Zeiss 441080 Microscope Objective A-Plan 100x/1.25 Oil - USED - Excellent Condition becomes available.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Objective A-Plan 100x/1.25 Oil (WD=0.15mm), incl. Immersol 518 N, oiler 20ml



A-Plan

This class of objectives provides an attractive alternative to "Achroplan" objectives, both in routine and research applications. "A-Plan" objectives provide rich contrast and can be used with eyepieces with a field of view up to 23 mm. They allow contrasting methods ranging from bright field to phase contrast and for excitation wavelength within the visible spectrum they can be used for epifluorescence work.



Characteristics

Magnification 100x
Numerical Aperture 1.25
Free Working Distance [mm] 0.15
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Oil
Field of View [mm] 23
Parfocal Length [mm] 45.06
Optical System Infinity Color Corrected System (ICS)
