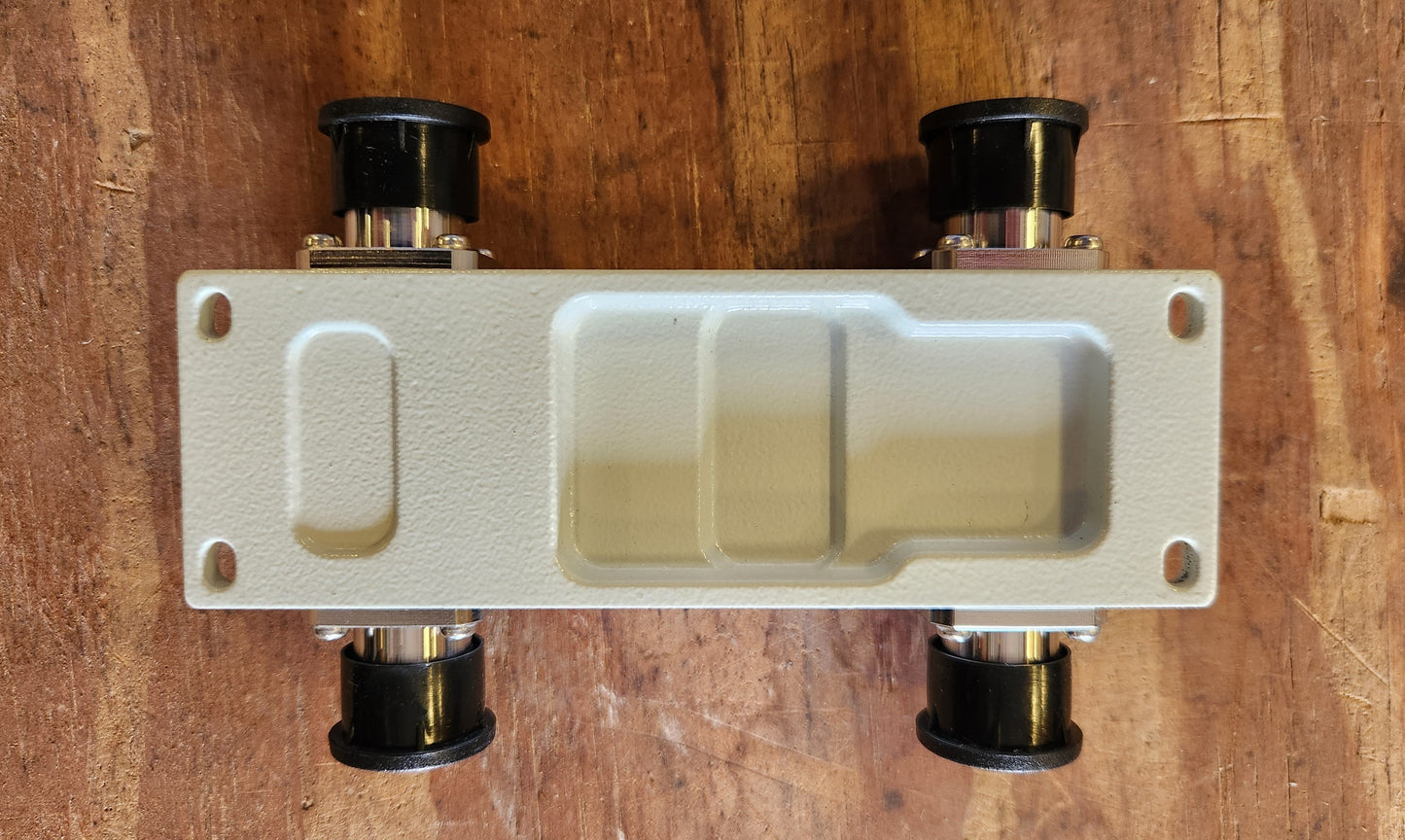

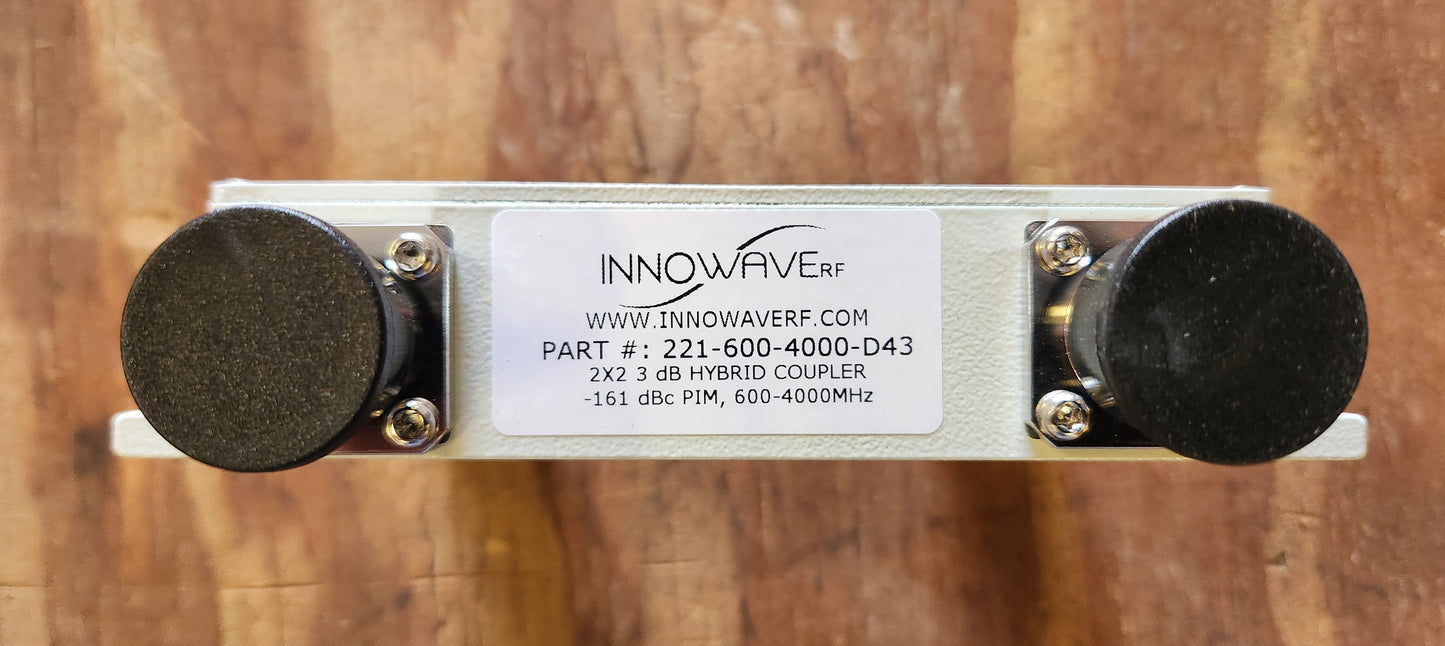

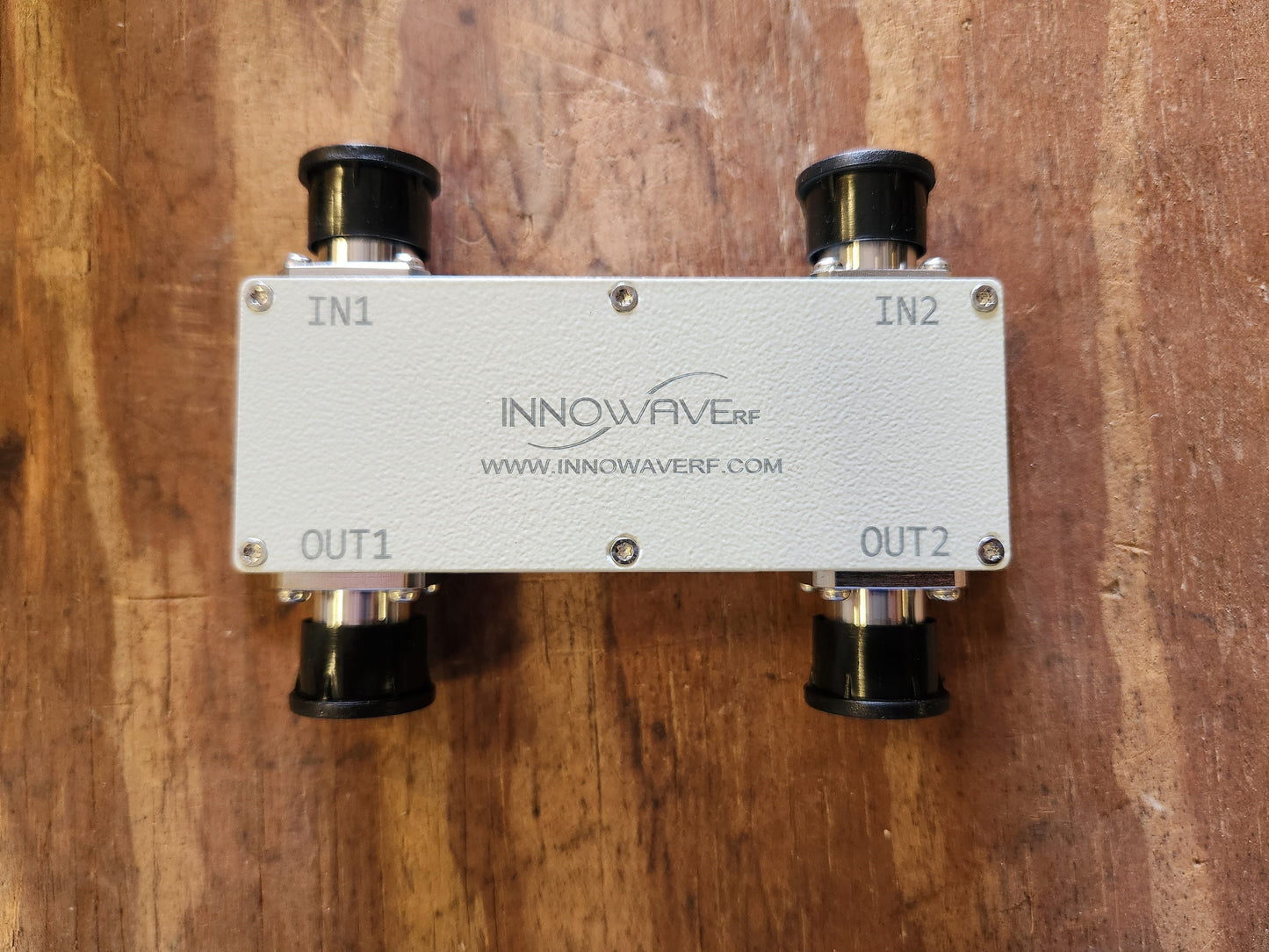

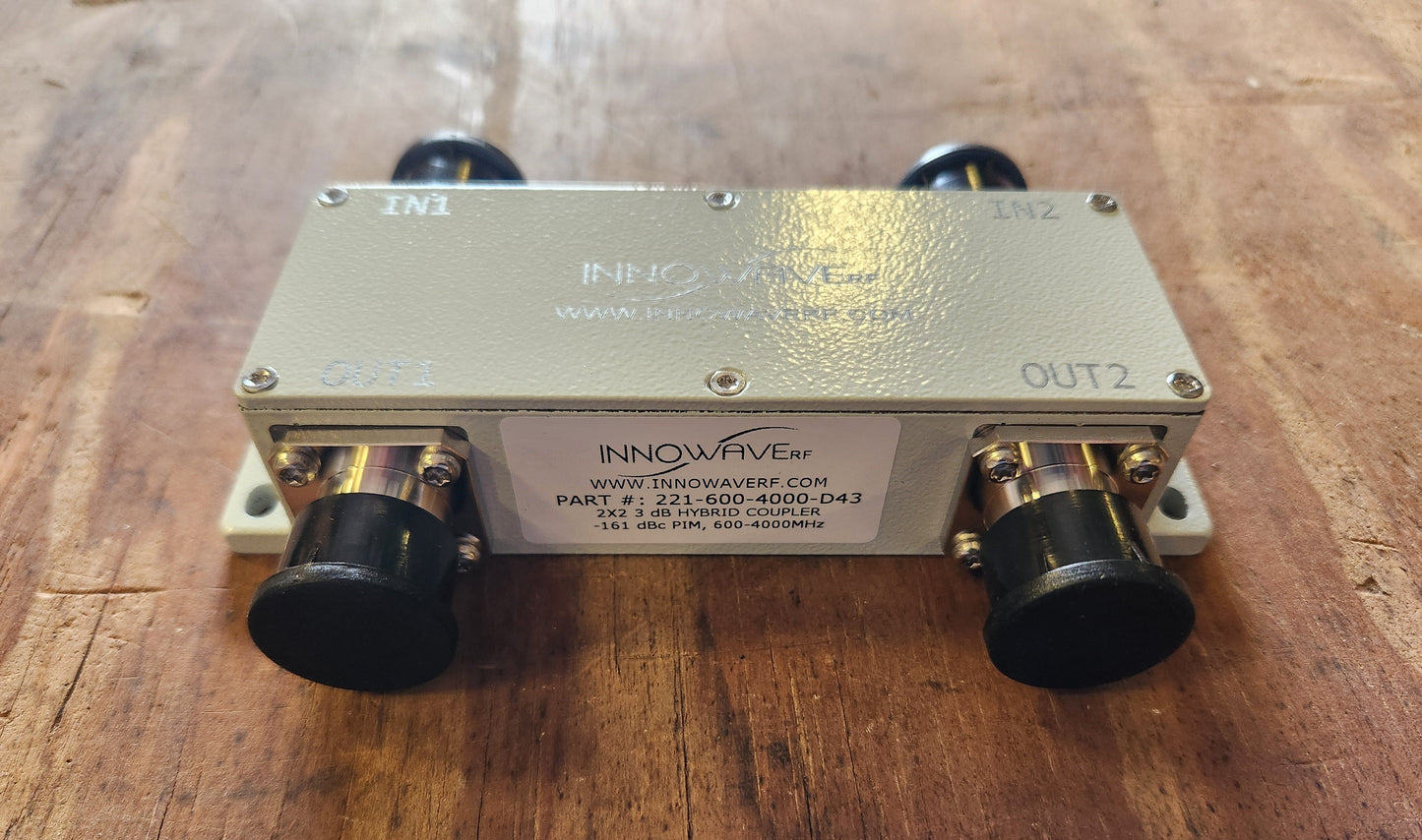

Part Number: 221-600-40002×2 3dB Wideband Hybrid Coupler-161dBc PIM, 600-4000 MHz, IP67
Description:
221-600-4000 is a 4-Port, 3dB Hybrid Coupler that can used to combine any 2 signals in 600MHz – 4000MHz range, including the CBRS and C-Band. The combined signal will appear at both the output ports. These are symmetric devices so inputs and outputs can be used interchangeably. It can also be used to split one input signal into 2 output ports. The unused port must be always terminated with a 50Ω Load. These hybrid couplers can be used over a wide range of temperature and environmental conditions.
Features:
Combines 2 signals in the 600MHz – 4000MHz
Cover 600MHz (Band 71), CBRS and C-Band
Best-in-class Isolation between the 2 signals
Very low Insertion Loss
Available in DIN, Mini-DIN, 4.3-10 or Nex10 Connectors
Low-PIM & High Power Handling
Ease of Mounting with mounting holes
Weatherproof for Outdoor use
In Stock and Available Immediately
ELECTRICAL SPECIFICATION
Frequency Range: 600MHz – 4000MHz
Coupling Loss: 3.10 dB ±0.75dB
Isolation: 23.00 dB
VSWR: 1.25
Impedance: 50 Ohms
Input Power: 200 Watts (Avg) / port
Intermodulation (PIM – 3rd): -161dBc
(2 Tones +43dBm)
MECHANICAL SPECIFICATION
Connectors: DIN (D) / Mini-DIN (MD)
4.3-10 (D43) / Nex10 (X10)
Housing Finish: Aluminum Body
Mounting Method: Mounting Holes
Temperature Range: -30°C to 65°C
Weight: 1.75 lbs
Humidity: 5% - 95%
Environment: IP67
