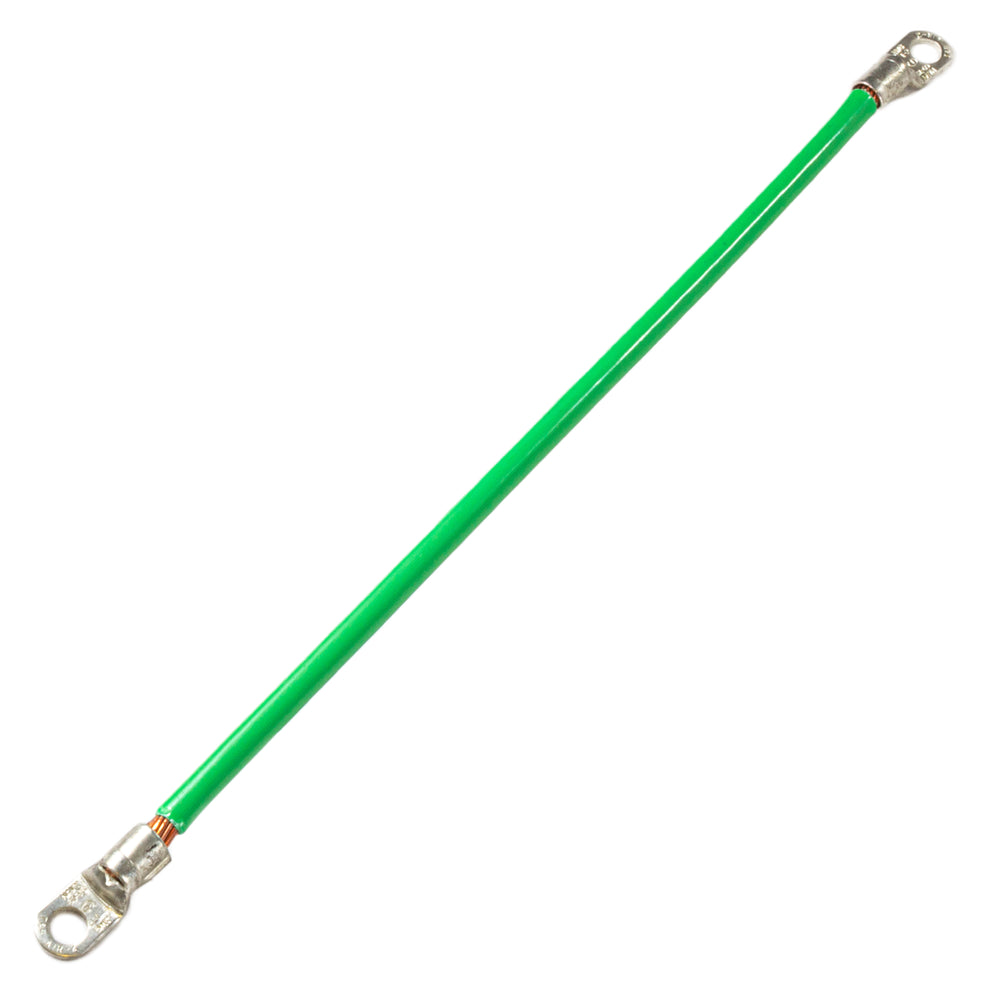

Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
- THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Construction

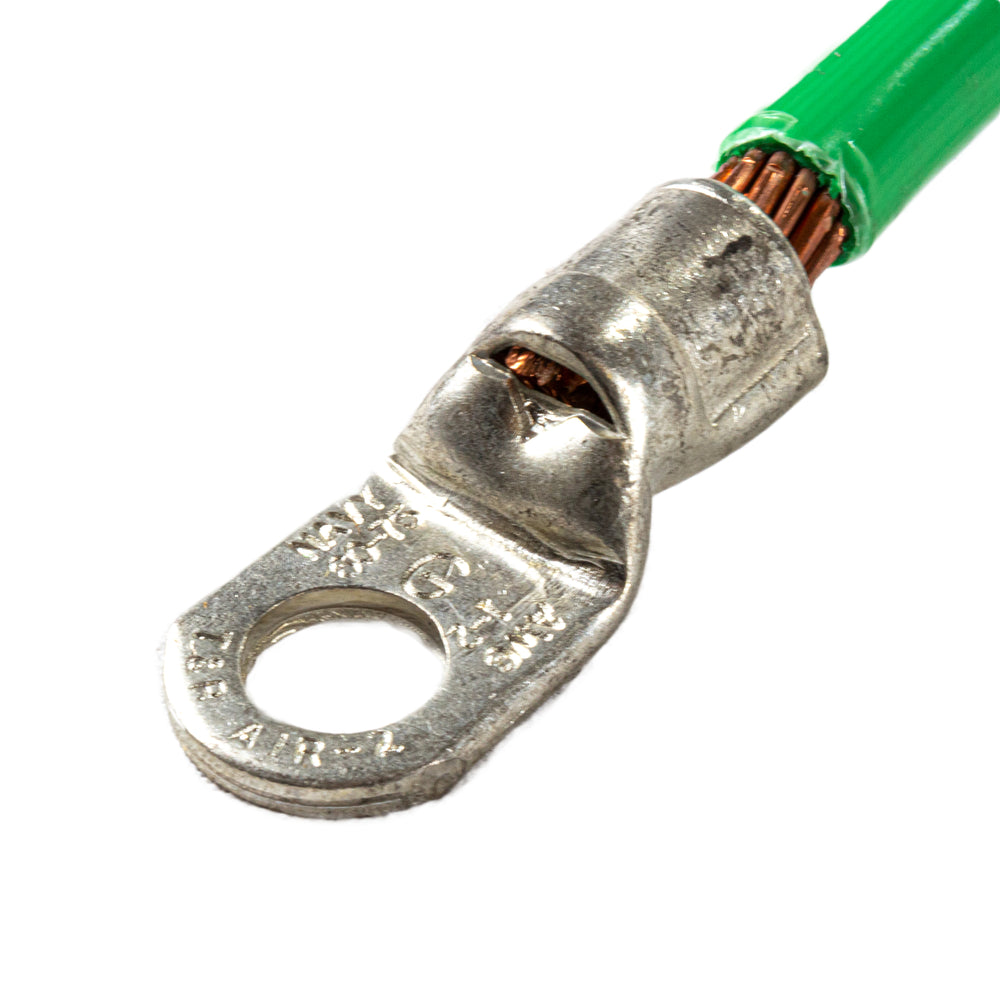

Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2. Marked sunlight resistant.
Standards & References
Southwire® SIMpull THHN® copper conductors comply with the following:
- ASTM - B3
- UL Standards 83 and 758
- CSA C22.2 No. 75
- NOM-ANCE 90° C
- Federal Specification A-A-59544
- National Electrical Code, NFPA 70
- VW-1
- FT1
- Sunlight Resistant
- MTW
- RoHS/REACH Compliant
Specifications
| STOCK # | 29583201 | |
| SIZE (AWG OR KCMIL) | 2 AWG | |
| NO. OF CONDUCTORS | 1 | |
| NO. OF STRANDS | 19 | |
| NOM. OD (MILS) | 380 | mils |
| INSULATION THICKNESS (MILS) | 40 | mils |
| JACKET THICKNESS (MILS) | 7 | mils |
| NOMINAL TOTAL WEIGHT (LBS/1000') | 235 | lbs/1000' |
| ALLOWABLE AMPACITY AT 60C | 95 | |
| ALLOWABLE AMPACITY AT 75C | 115 | |
| ALLOWABLE AMPACITY AT 90C | 130 |
